Product Overview

CJX2s series AC Contactor with novel appearance and compact structure is suitable for using starting & controlling the AC motor frequently, switching on and off the circuit at a long distance. It is used in combination with thermal relay to compose a magnetic motor starter. Standard: IEC 60947-1, IEC 60947-4-1.

Specifications

Rated operation current(Ie): 9-95A；

Rated operation voltage(Ue): 220V~690V；

Rated insulation voltage: 690V； Poles: 3P；

Installation: Din rail and screw installation

Operating and Installation Conditions

Product Structure Analysis Diagram

Specifications

Overall and Mounting

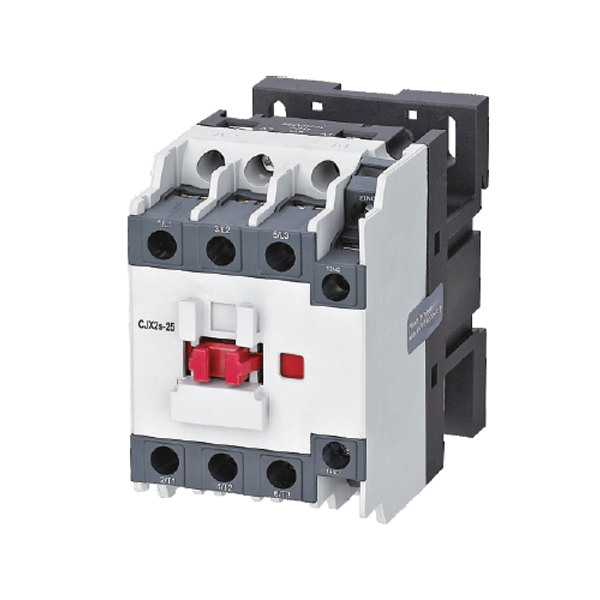

CJX2s-09~38

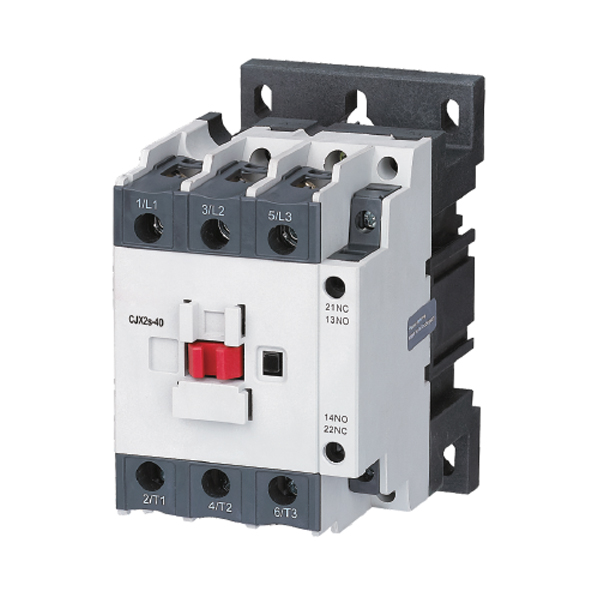

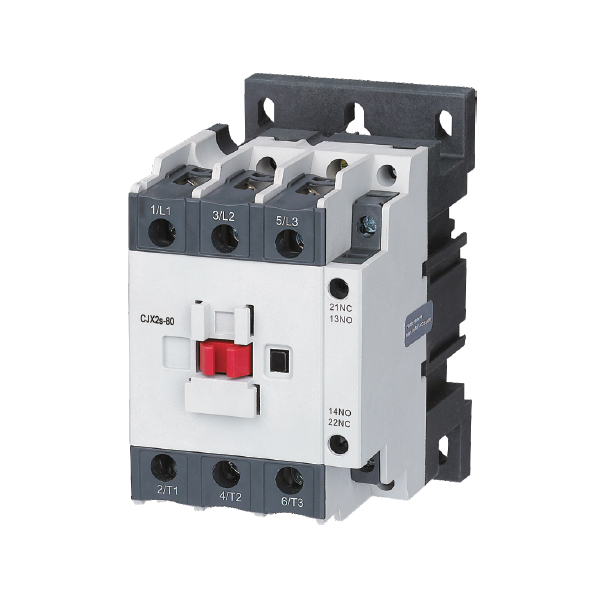

CJX2s-40~95
